Najważniejsze informacje:
- Tap and Die Thread Restorers will repair cross threaded fittings, remove burrs, and renew rusted fittings

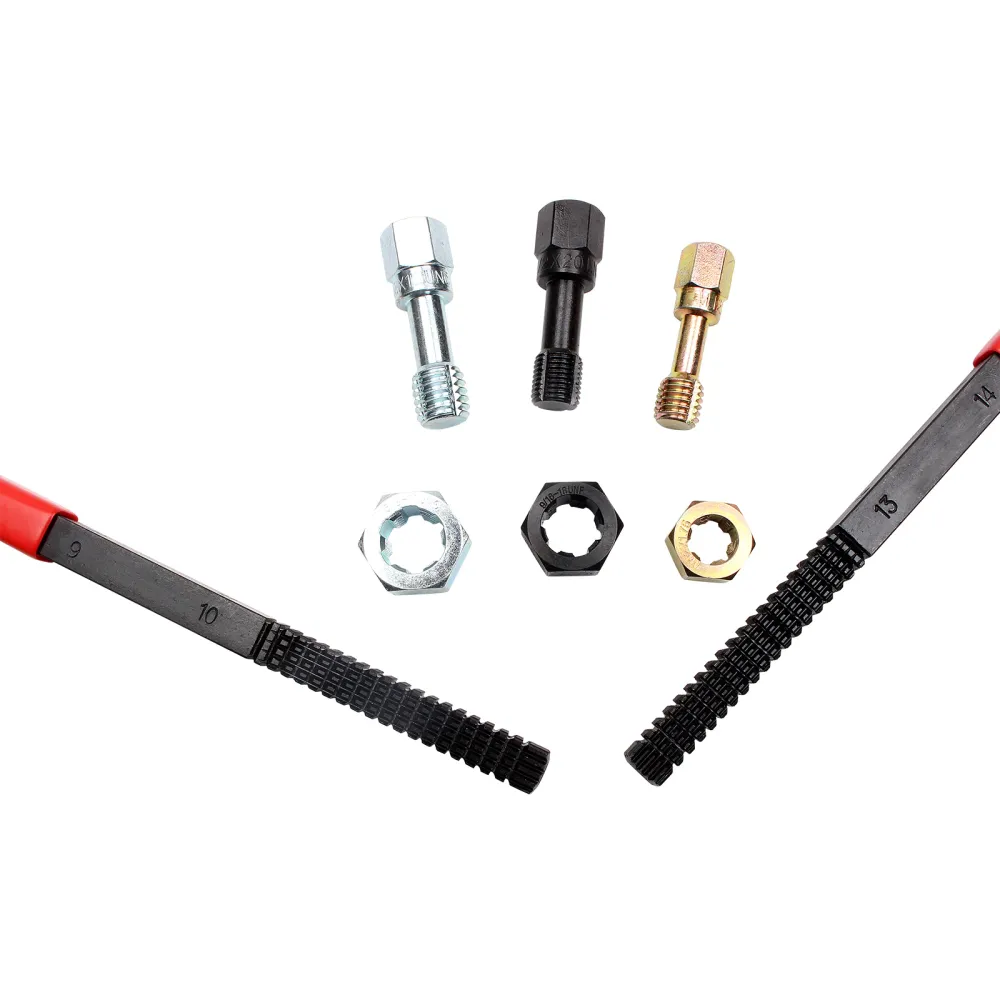

- Rethreading taps and dies are color coded in gold (metric), black (SAE fine), and silver (SAE coarse) for quick visual identification
- Rethread Die Sizes : 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 – UNC / UNF 6 x 1.00 | 8 x 1.25 | 10 x 1.25 | 10 x 1.50 | 12 x 1.25 | 12 x 1.5 | 12 x 1.75 mm
- Re-Thread Taps : 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 – UNC / UNF 6 x 1.00 | 8 x 1.25 | 10 x 1.25 | 10 x 1.50 | 12 x 1.25 | 12 x 1.5 | 12 x 1.75 mm
- Thread File : 11 | 12 | 13 | 14 | 15 | 16 | 18 | 20 and 24; Thread File : 9 | 10 | 12 | 16 | 20 | 27 | 28 and 32
Opis:

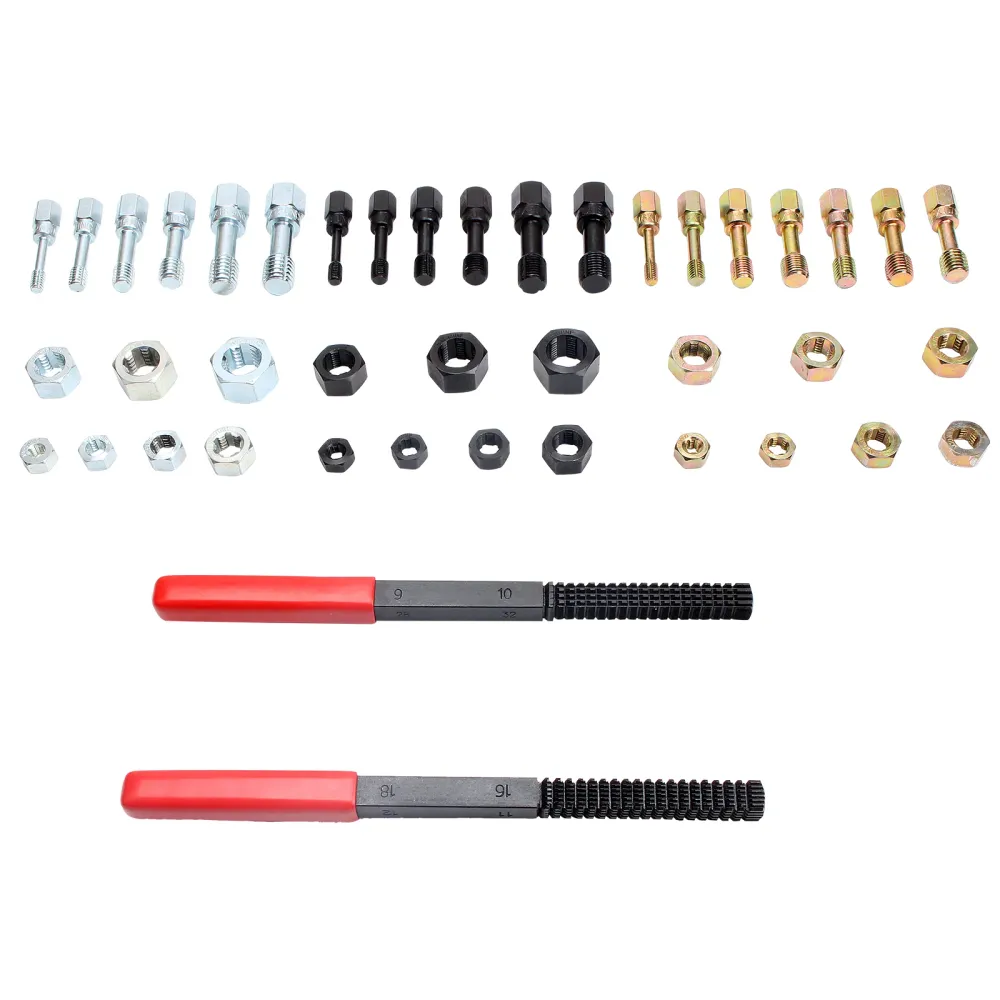

6 NF-SAE/fine taps, sizes: 1/4 „x28 – 5/16 „x24 – 3/8 „x24 – 7/16 „x20 – 1/2 „x20 – 9/16 „x18;
7 NF-SAE/fine taps, sizes: 1/4 „x28 – 5/16 „x24 – 3/8 „x24 – 7/16 „x20 – 1/2 „x20 – 9/16 „x18 – 5/8 „x18
6 NC-USS/coarse taps, sizes: 1/4 „x20 – 5/16 „x18 – 3/8 „x16 – 7/16 „x14 – 1/2 „x13 – 9/16 „x12;
7 NC-USS/coarse taps Sizes: 1/4 „x20 – 5/16 „x18 – 3/8 „x16 – 7/16 „x14 – 1/2 „x13 – 9/16 „x12 – 5/8 „x11
7 Metric tap, sizes: M6x1 – M8x1.25 – M10x1.25 – M10x1.5 – M12x1.25 – M12x1.5 – M12x1.75;
7 Metric taps: M6x1 – M8x1.25 – M10x1.25 – M10x1.5 – M12x1.25 – M12x1.5 – M12x1.75
1 thread file 11 – 12 – 13 – 14 – 16 – 18 – 20 – 24
1 thread file 10 – 12 – 16 – 20 – 27 – 28 – 32
